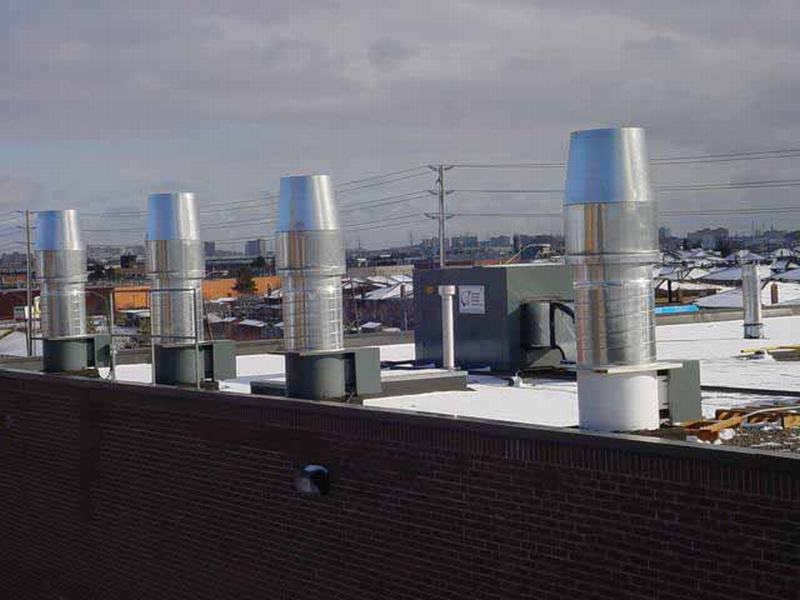

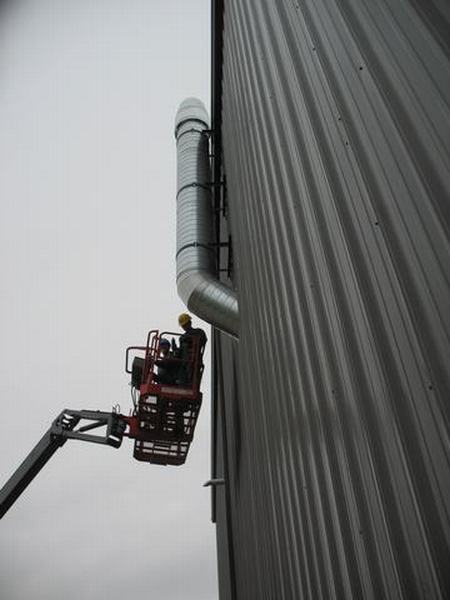

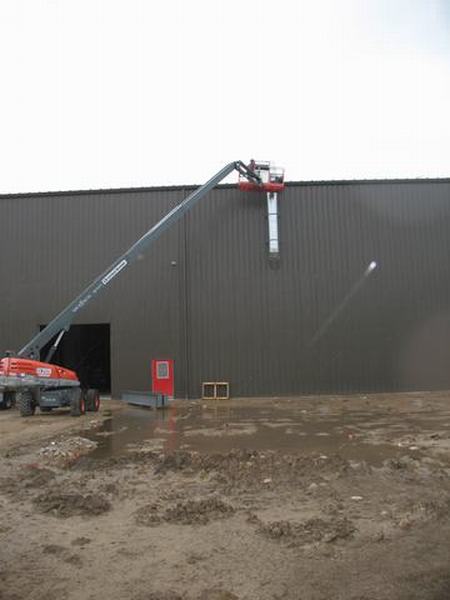

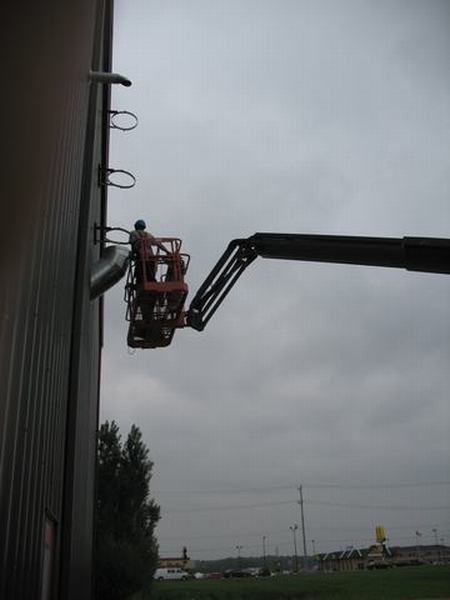

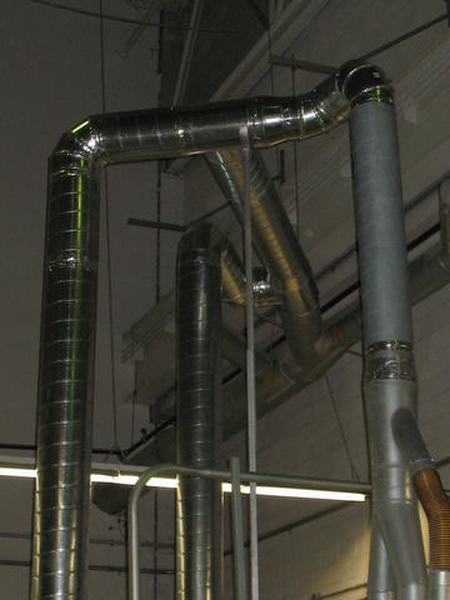

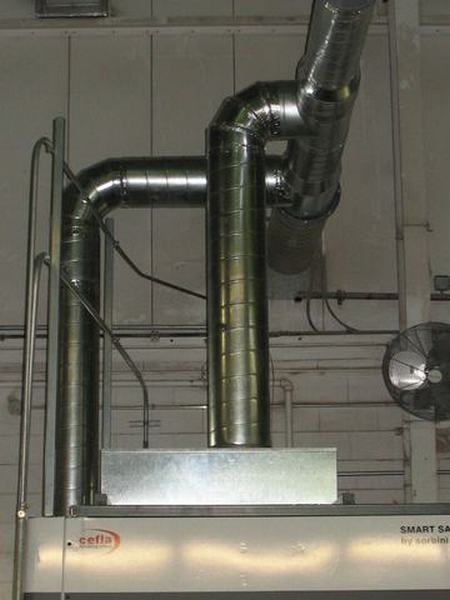

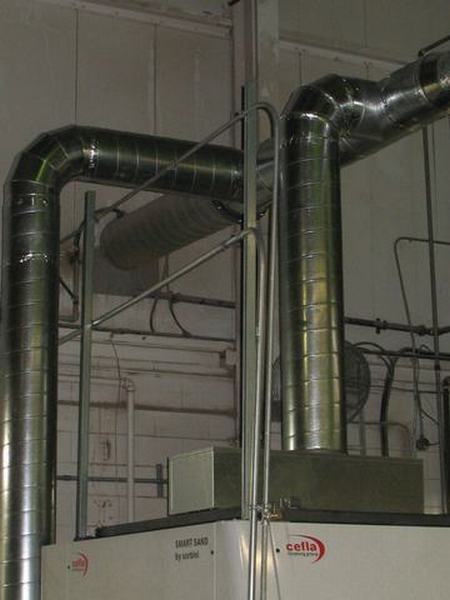

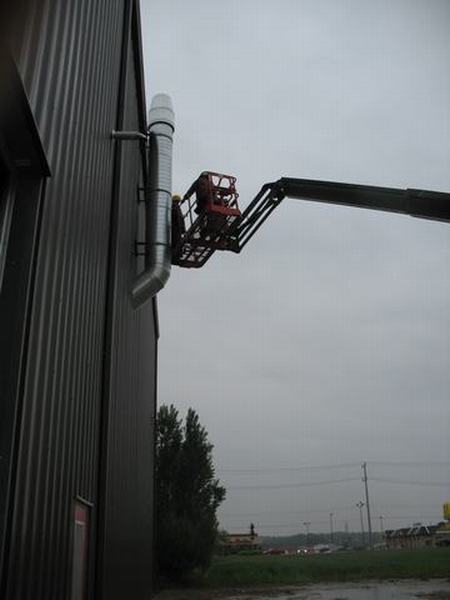

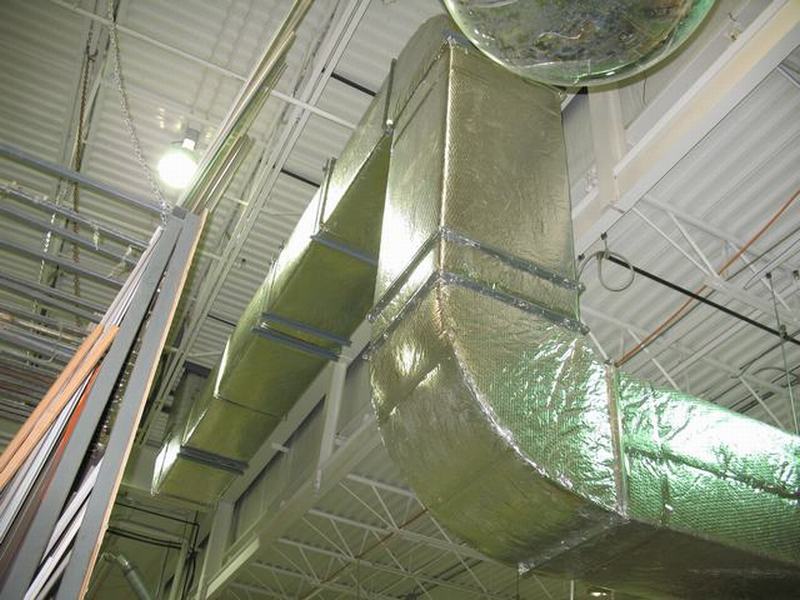

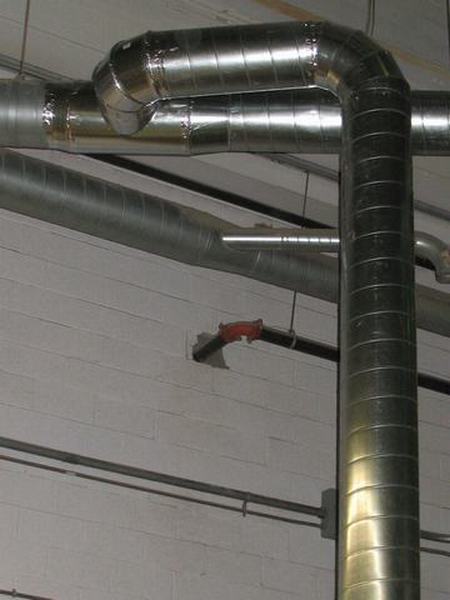

Exhaust Fan and Ducting System
FAN IN SPRAY BOOTH
EXHAUST - CFM SERIES
FOR SPACE VACUME AND SPRAY BOOTH APPLICATIONS

BELT DRIVE FANS & BLOWER

Our exhaust fan diameters are from 12" to 36". The capacity comes from 2,000 CFM to 16,000 CFM. We also provide the fan with customer's different size.

  • Variable speed motor and controller (optional)
  • Air flow damper and controller
  • Electrical panel (optional)

   ·   12 TO 36 INCHES DIAMETER
   ·   2,000 To 16,000 CFM
   ·   208, 230, 460 AND 575 VOLTS
   ·   SINGLE PHASE AND THREE PHASES
   ·   WEATHER COVER (OPTIONAL)
   ·   VARIABLE SPEED MOTOR AND CONTROLLER (OPTIONAL)
   ·   AIR FLOW DAMPER AND CONTROLLER (OPTIONAL)
   ·   ELECTRICAL PANEL (OPTIONAL)
   ·   ONE-YEAR WARRANTY AND TEN YEARS AFTER SALE SERVICES

DIMENSION

MOTOR HP

PHASE

BLADE

VOLTAGE

CFM

FANSIZE

12"

1

1-3

5 or 9

208; 230; 460; 575V

2000-3000

18"

2

1-3

5 or 9

208; 230; 460; 575V

3500-5000

24"

2

1-3

5 or 9

208; 230; 460; 575V

6000-9000

30"

3

1-3

5 or 9

208; 230; 460; 575V

10000-12000

36"

5

1-3

5 or 9

208; 230; 460; 575V

14000-16000

Type 900 - II LOW NOICE, HIGH CAPACITY CENTRIFUGAL FAN & TYPE 900 LOW NOISE, HIGH CAPACITY CENTRIFUGAL BLOWER.
